Sticker Die Cutting Machine

sticker die cutting machine

  • High Speed Constant Temperature Hot Stamping Function.
  • Servomotor to sure the length and PLC Touch Screen Control.
  • High Speed with 23000r/Hour, more than 50m/min Die Cutting

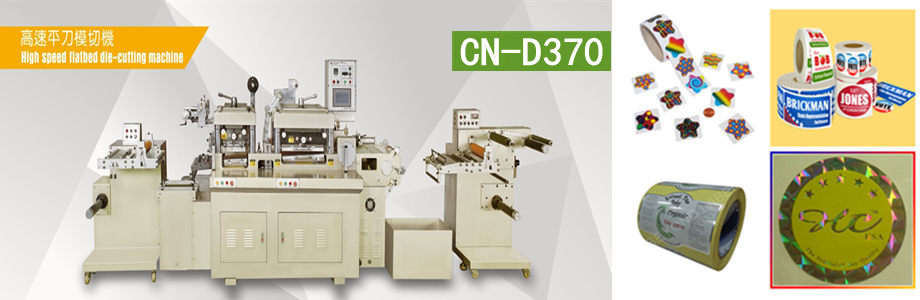

Model CN-D370 CN-D330
Max Paper Width 370mm 330mm
Max.Paper Length 260(left)*480(right station)mm 390(left)*330(right station)mm
Max. Speed 23,000r/hour 23,000r/hour
Reverse Hot Stamping 38m/min 38m/min
Suitable Material Roll Fed Material(<350g) Roll Fed Material(<350g)
Power 380V/32A/12KW 380V/32A/12KW
Die Cutting Accurancy (+-0.15mm) (+-0.15mm)
Weight 5500KG 4000KG
Machine Size LxWxH(mm) 5300x1500x1900 5200x1400x2000

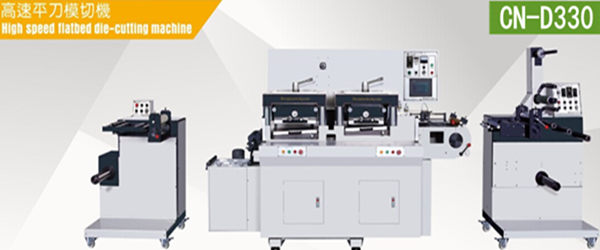

CN-D330 Label Sticker cutting machine

Application of Die Cutting Machine:

  • Roll label sticker die cutting, hot stamping,High Speed!
  • Mainly Market: USA,Vietnam,Malaysia,South Africa,DUBAI,Indonesia,India.etc

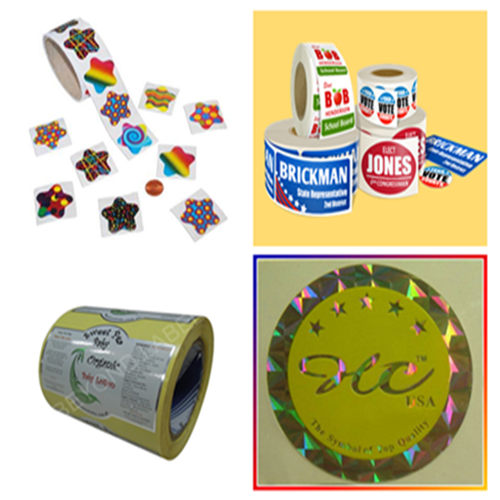

roll label sticker

Download Brochure of Die Cutting Machine:

download brochure of blister folding machine
Sticker Die Cutting machine, Sticker Cutting Machine, Label Sticker Cutting Machine,Roll sticker cutting machine, Roll Label Sticker Cutting Machine.etc
